Product Description

5HP High Head Grinder Pump, 1 or 3 Phase

(Class 1, Div. 1, Groups C & D Hazardous Location)

The KEEN PUMP KHG(X)5 series centrifugal grinder pumps easily handle residential, commercial or industrial sanitary waste, reducing it to a fine slurry. The KHG(X)5 pump is designed for use in pressure sewer applications or any piping network. The recessed vortex impeller design of the KHG(X)5 grinder pump provides troublefree, non-overloading operation over the entire performance curve. The modular design provides quick and easy serviceability. The hardened stainless steel grinder assembly provides many years of dependable operation.

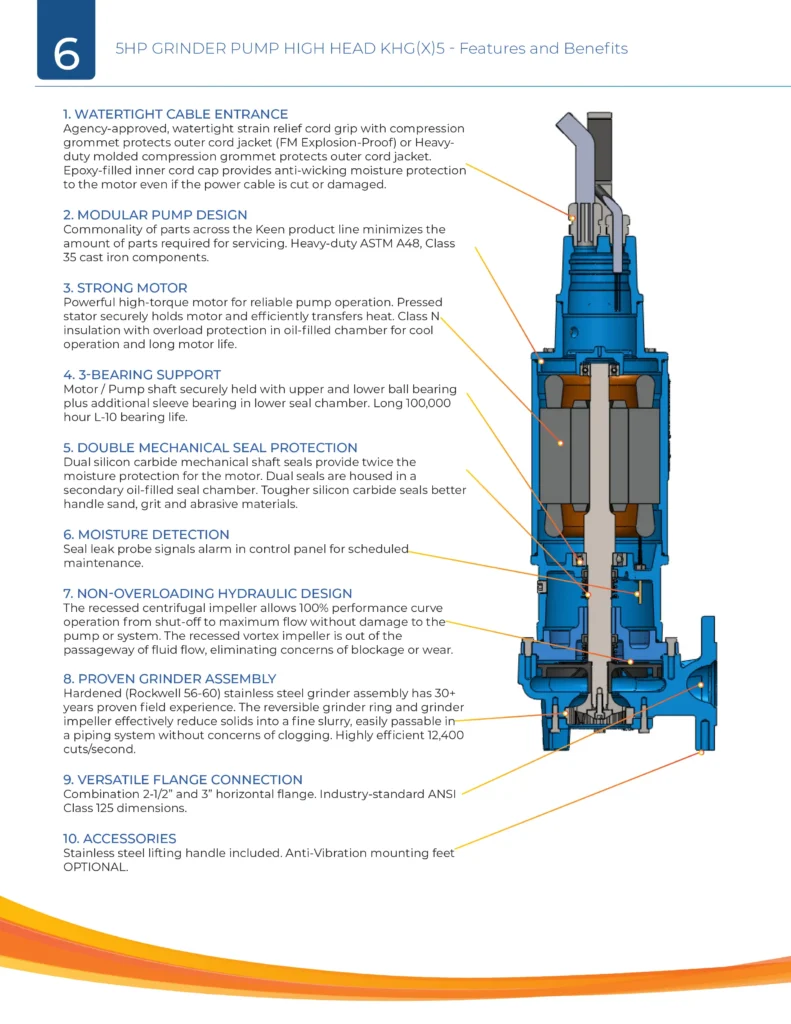

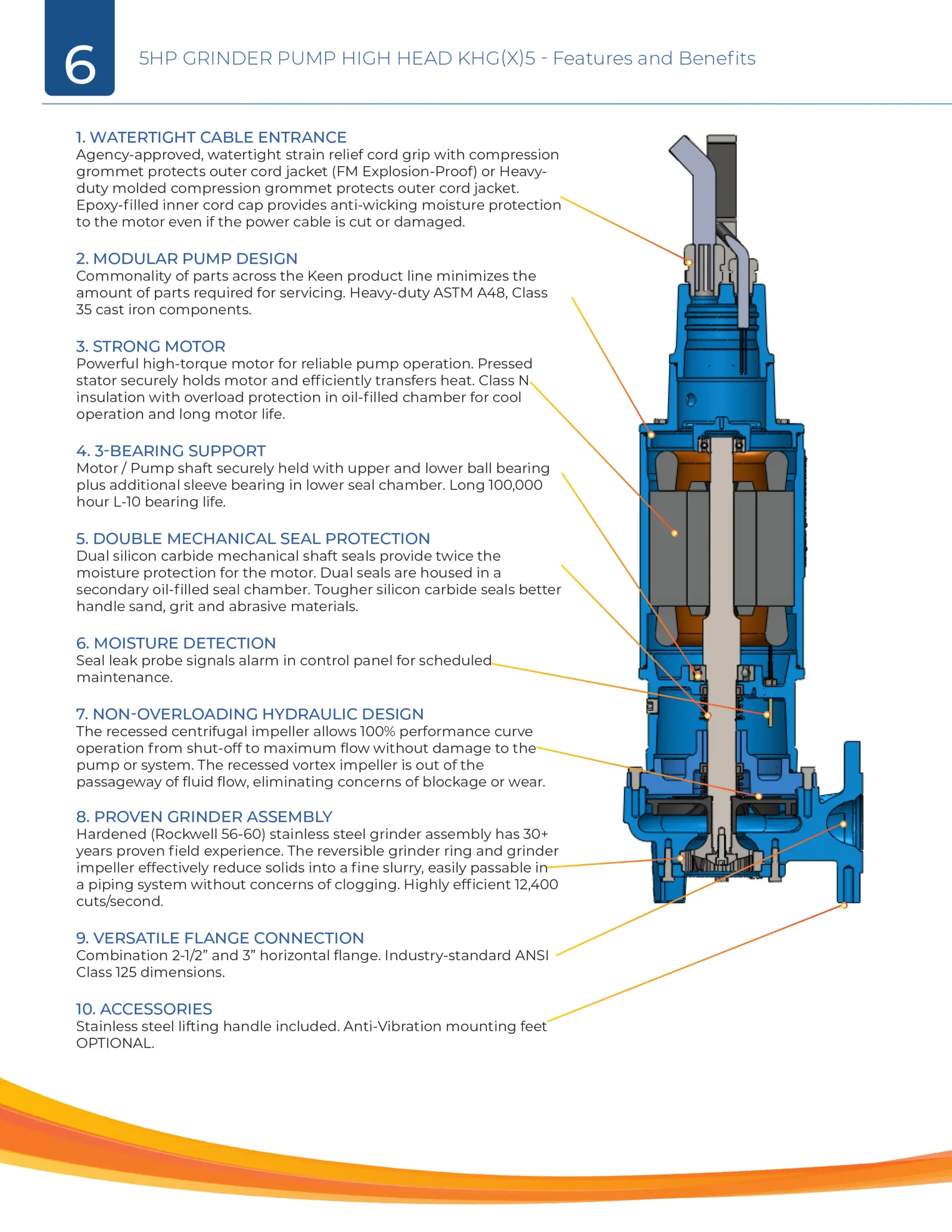

THE KHG(X)5 SERIES PUMP FEATURES:

  • Interchangeable with Competitor Installations
  • Dual Silicon-Carbide Mechanical Shaft Seals w/ Viton® Elastomers
  • Pressed-In Motor with Internal Overload Protection
  • 3-Bearing Shaft Support (Upper / Lower / Sleeve)
  • Internal Moisture Detection
  • Strong Motor, 1-Phase (208/230) Volt or 3-Phase (208/230/460) Volt

Additional Details

No additional technical data available at this time.
No additional Features & Benefits available at this time.
