4” Submersible, Enclosed Impeller
(Class 1, Div. 1, Groups C & D Hazardous Location)

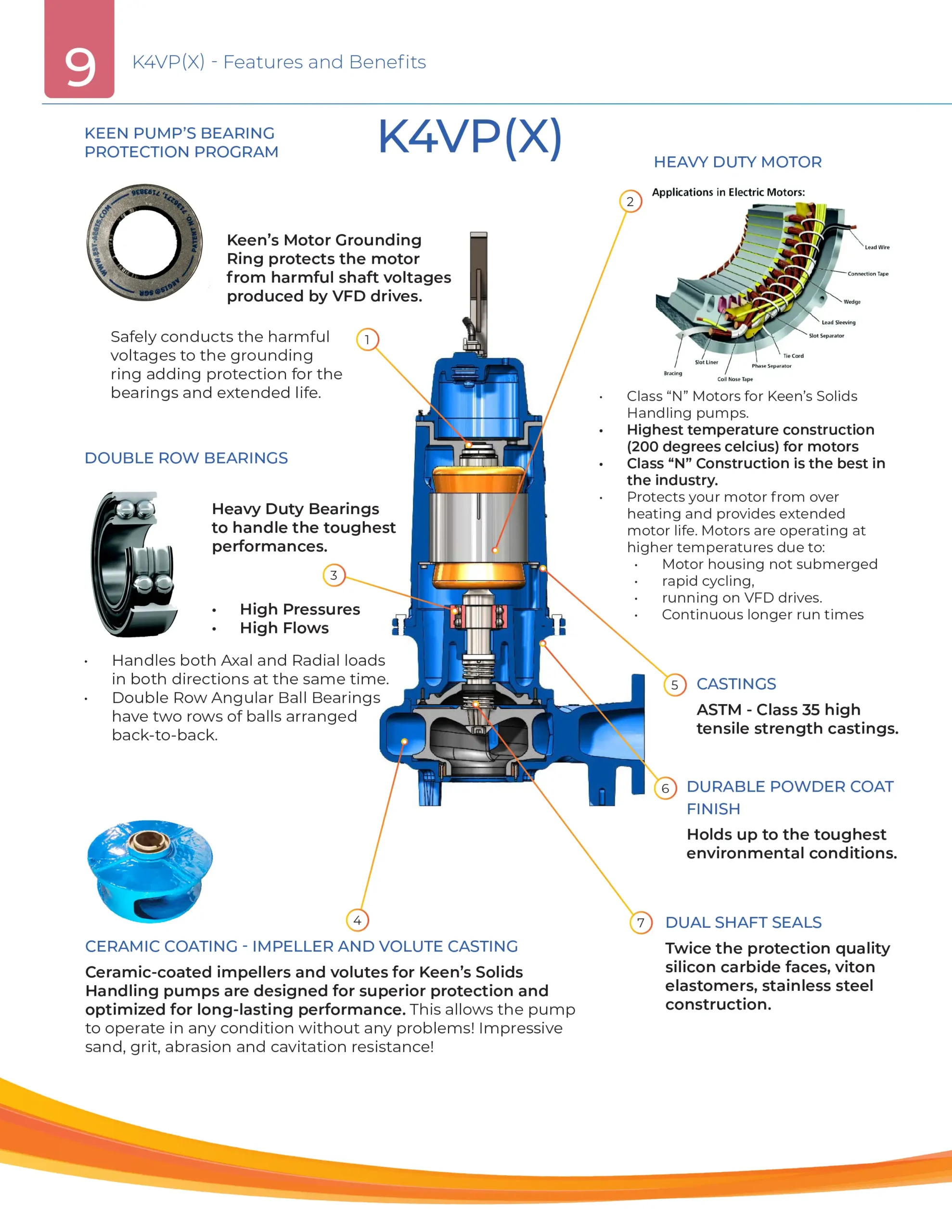

CERAMIC COATED ENCLOSED IMPELLER
- Superior Abrasion Resistance
- Allows The Pump To Operate Better In Any Pressure Or Flow Condition
HEAVY DUTY PUMP SERIES
- Handles Aggressive Pumping Applications
- Strong Pumping Capacities to 1200 GPM
- Smooth, Quiet Operation
- Centerline Volute Discharge
BEST MOTOR CONSTRUCTION
- Class “N” (392° F) Highest Temperature
- Motor Will Not Overheat In Continuous Applications
STRONG PERFORMANCE
- Non-overloading Performance Curve
- Pump-Out Vanes Prevent Material Build-up
- Positive Pumping Action through Impeller
- Ideal for Higher Flows
LONG SERVICE LIFE
- Dual Silicon Carbide Shaft Seals
- Low Motor Operation Temperatures
- Continuously Lubricated Ball Bearings
LOW MAINTENANCE
- Easily Replaceable Impeller Wear Ring Restores Original Pump Performance
- Unobstructed Impeller Passageway
- Grit-Resistant Silicon Carbide Shaft Seals
- Large, 3” diameter Solids-Handling
- High Service Factor Motor Handles Tough Electrical Operating Conditions
