KEEN PUMP “K24VK” Series pumps are designed for demanding wastewater, municipal sewage treatment plants, storm water, industrial, commercial and a wide range of water-handling applications.

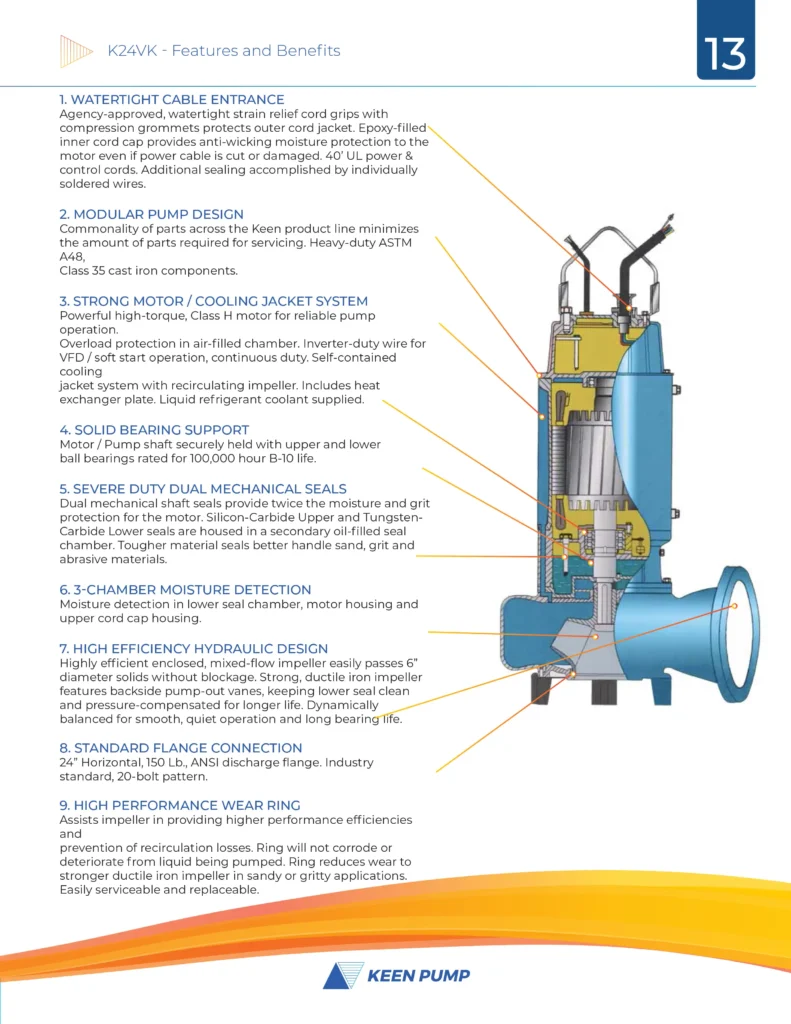

“K24VK” Series pumps feature a self-contained cooling jacket system, circulating impeller, heat exhanger plate and liquid refrigerant with a high boiling point (195º C). Standard construction allows for submersible and dry pit installations.
“K24VK” pumps are equipped with high-efficiency, inverter-duty rated, Class H insulation motors. Electrical features include fully automatic
alarm protection system and liquid level control system, protecting the motor from water, oil, phase loss, overheating and grounding.
CAPABILITIES:

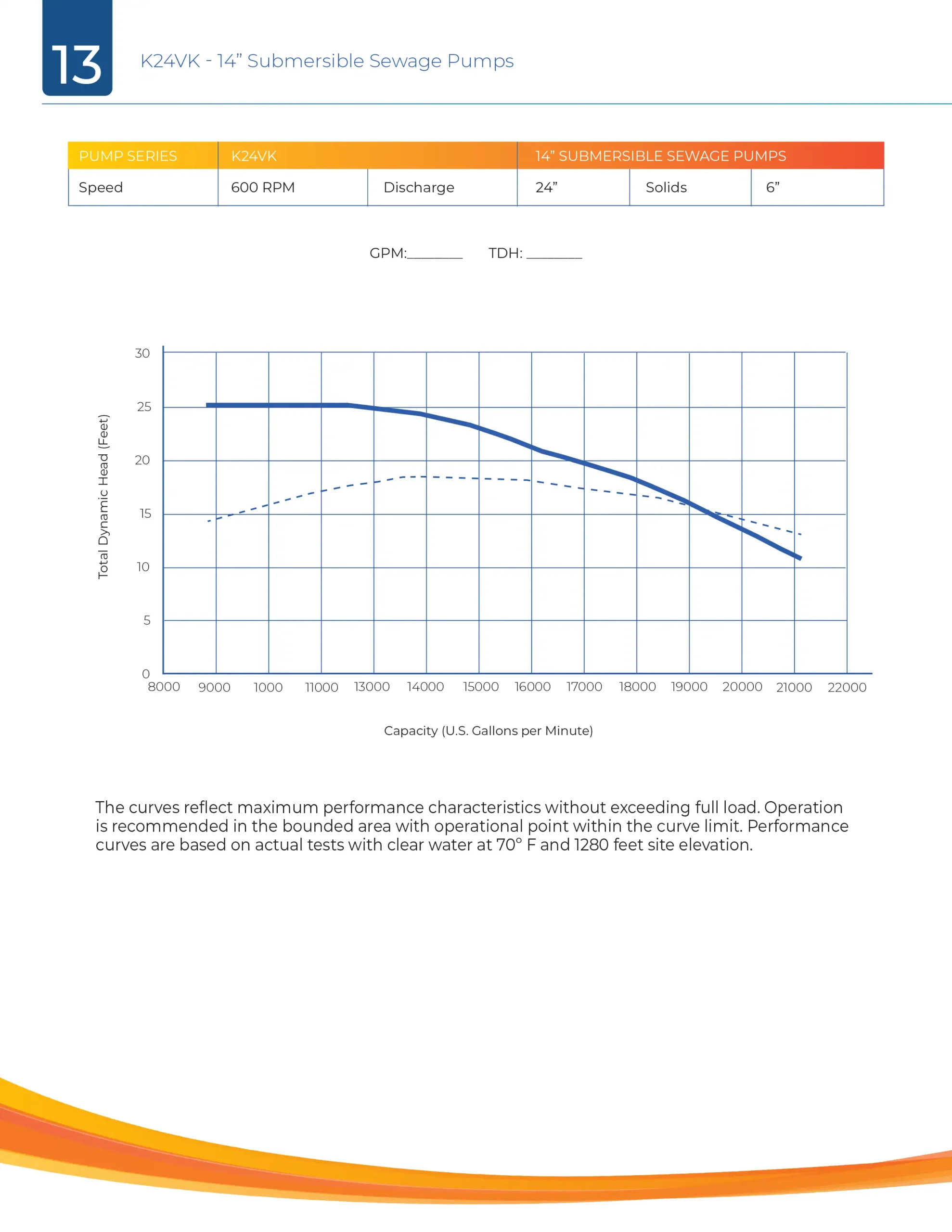

Flows to 16,000 GPM
Heads to 26 Feet
Horsepower: 100 HP
Voltage/Phase Options: 460, 3 Phase
Discharge Connections: 24” ANSI 150 Lb., Horizontal Flange
Motor Speeds: 600 RPM
Solids Handling: 6”
Impeller: Balanced, Mixed Flow Enclosed
Motor Serice Factor: 1.25
